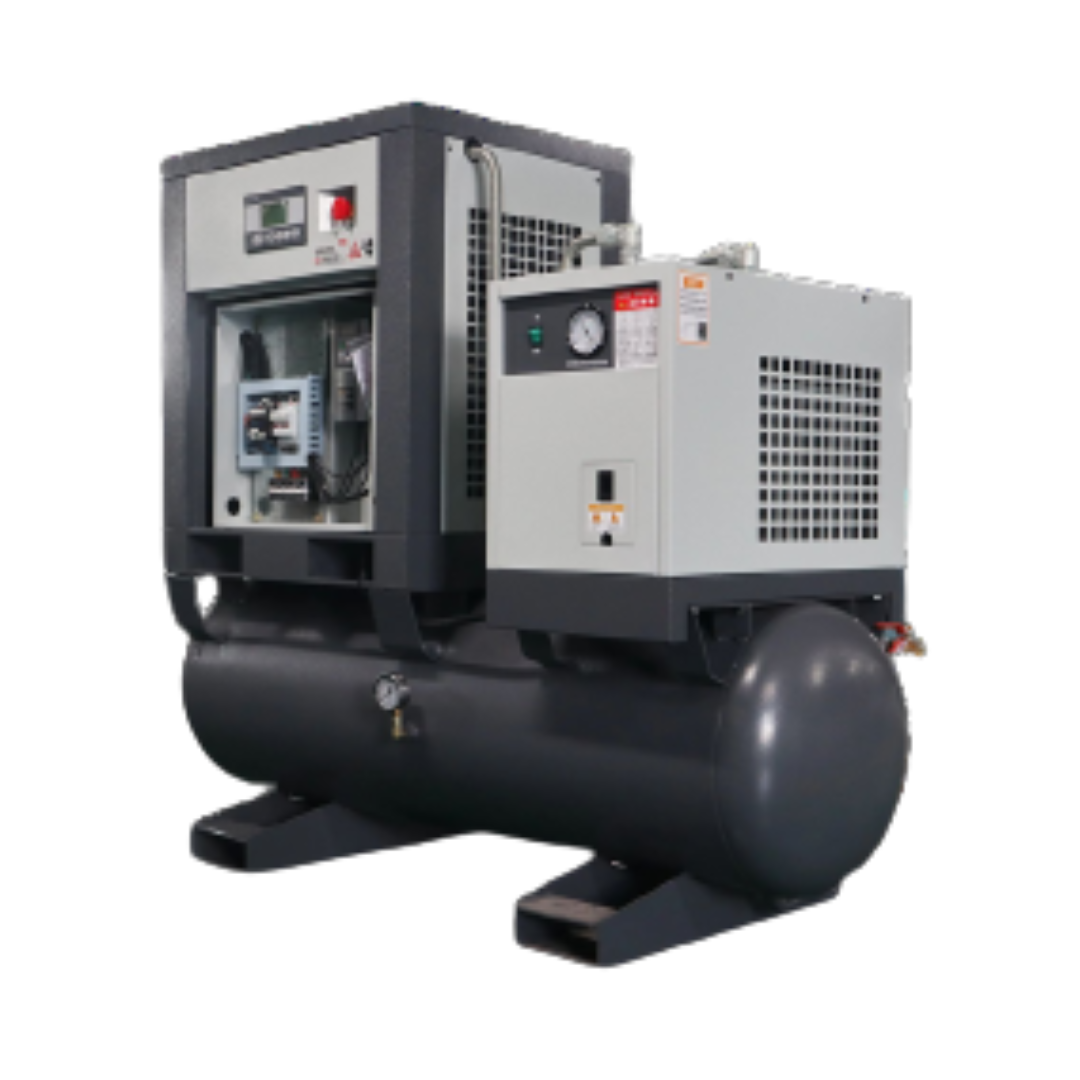

JK BAZ Tank Mounted Screw Air Compressors (2-in-1 Type) are designed to provide an efficient and space-saving compressed air solution by integrating a screw air compressor with an air receiver tank in a single unit. This compact configuration simplifies installation, reduces piping requirements, and ensures a stable supply of compressed air for industrial operations.
Built for reliability and long-term performance, these compressors offer energy-efficient operation, low maintenance, and quiet performance. Their robust construction and compact footprint make them ideal for workshops, manufacturing facilities, automotive service centers, and small to medium-scale industries requiring dependable compressed air without occupying excessive floor space.
Model Specifications
| Model | Motor Power | Air Delivery (m³/min) | Air Delivery (CFM) | Pressure | Tank Capacity | Power Supply | Weight | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| AHB-7A | 5.5 kW (7.5 HP) | 0.75 | 27 | 0.8 MPa | 300 L | 430V / 3Ph / 50Hz | 370 kg | 1600 × 600 × 1300 |
| AHB-10A | 7.5 kW (10 HP) | 1.10 | 39 | 0.8 MPa | 300 L | 430V / 3Ph / 50Hz | 380 kg | 1600 × 730 × 1550 |
| AHB-15A | 11 kW (15 HP) | 1.50 | 53 | 0.8 MPa | 300 L | 430V / 3Ph / 50Hz | 420 kg | 1600 × 800 × 1670 |
| AHB-20A | 15 kW (20 HP) | 2.30 | 81 | 0.8 MPa | 500 L | 430V / 3Ph / 50Hz | 490 kg |
